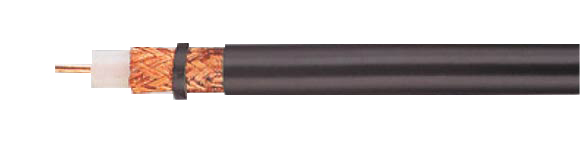

PE-Insulated, Bare
Copper Conductor + 2x Bare Copper Braid, PVC Outer
Jacket
RG-Type.../U 217
Sealcon, Inc, European & Domestic cable
Part
Number:40200 Add to Quote
Electrical
Characteristics
Impedance:
50± 2
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.66
Approx.
Capacitance:
101.0 pF/m
Rel. Velocity
of Propagation:
100%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
5 Ohm/km
Nominal
Peak Voltage:
7.0 kV
Dielectric
Strength 50Hz kV eff.
10.0
Attenuation
at 20°C (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
4.8
7.1
12.3
16.8
Technical
Data
Electrical
Characteristics
Impedance:
50� 2
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.66
Approx.
Capacitance:
101.0 pF/m
Rel. Velocity
of Propagation:
100%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
5 Ohm/km
Nominal
Peak Voltage:
7.0 kV
Dielectric
Strength 50Hz kV eff.
10.0
Attenuation
at 20�C (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
4.8
7.1
12.3
16.8
Approvals
Cable
Construction
Inner
Conductor � mm:
1
x 2.7
Conductor Material:
Copper, Bare
Insulation � mm:
9.4 PE
Outer Conductor:
2 Braids: Copper,
Bare
Outer Jacket:
PVC
Min. Bending
Radius:
70 mm
Temperature Range:
-35�C to
+80�C (-31�F to
+176�F)
Copper Weight:
187.0 kg/km
Outer Diameter
(approx.):
13.84 mm
Weight (approx.):
300 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Properties
N/A
Note
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
The color for PTFE outer jacket
is black or transparent as per production
outlet
RG-Coaxial types are in accordance with
US-Military specifications MIL-C-17
