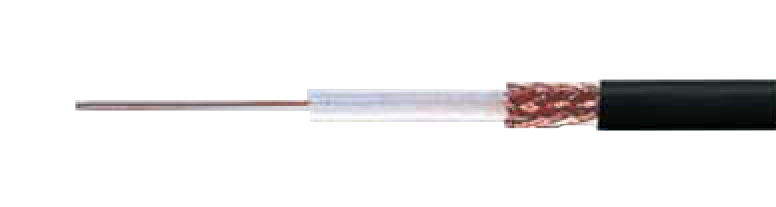

PE-Insulated, Steel
/ Bare Copper Conductor / Bare Copper Braid, HM2 Outer
Jacket
RG-Type.../U 59
Sealcon, Inc, European & Domestic cable
Part
Number:40192 Add to Quote
Electrical
Characteristics
Impedance:
75± 3
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.66
Approx.
Capacitance:
68.0 pF/m
Rel. Velocity
of Propagation:
67%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
171 Ohm/km
Nominal
Peak Voltage:
2.3 kV
Dielectric
Strength 50Hz kV eff.
7.0
Attenuation
at 20°C (dB/100m):
3
MHz
10
MHz
100
MHz
200
MHz
500
MHz
800
MHz
2.0
3.8
12.2
17.6
27.2
35.2
Technical
Data
Electrical
Characteristics
Impedance:
75� 3
Ohm
Frequency
Range (max.):
3
GHz
Propagation
Velocity v/c:
0.66
Approx.
Capacitance:
68.0 pF/m
Rel. Velocity
of Propagation:
67%
Insulation
Resistance (min.):
105 MOhm
x km
Loop Resistance
(max.):
171 Ohm/km
Nominal
Peak Voltage:
2.3 kV
Dielectric
Strength 50Hz kV eff.
7.0
Attenuation
at 20�C (dB/100m):
3
MHz
10
MHz
100
MHz
200
MHz
500
MHz
800
MHz
2.0
3.8
12.2
17.6
27.2
35.2
Approvals
FRNC
Cable
Construction
Inner
Conductor � mm:
1
x 0.6
Conductor Material:
Steel / Copper,
Bare
Insulation � mm:
3.7 PE
Outer Conductor:
Braid: Copper,
Bare
Outer Jacket:
HM2
Min. Bending
Radius:
30 mm
Temperature
Range:
-35�C to
+80�C (-31�F to
+176�F)
Copper Weight:
26.0 kg/km
Outer Diameter
(approx.):
6.4 mm
Weight (approx.):
57 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions where no flame propagation under behavior in fire is permitted. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Note
The materials used in manufacture are
cadmium-free, contain no silicone
and are free from substances harmful to the
wetting properties of lacquers
H-outer jacket = halogen-free material
HM2
RG-Coaxial types are in accordance
with US-Military specifications MIL-C-17
