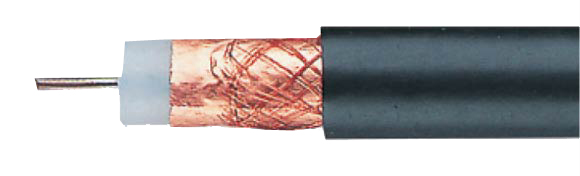

PE-Insulated, Bare Copper Conductor / Copper Tape, Braid, PE Outer Jacket
1.8 / 11.5 FG
Sealcon, Inc, European & Domestic cable
Part
Number:
40141 Add to Quote
Electrical
Characteristics
Impedance:
75± 3
Ohm
Approx.
Capacitance:
67.0 pF/m
Propagation
Velocity v/c:
0.66
Post Office
Approved:
G622010B
Attenuation
at +20°C/+68°F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
3.5
5.2
9.0
12.0
13.0
-
-
-
Structural
Return Loss (min.):
30 and 300 MHz
300 and
600 MHz
600
and 960 MHz
960
and 1750 MHz
30
30
28
25
Direct
Current Resistance at +20°C/+68°F:
Inner Conductor max.
7.3
Ohm/km
Outer Conductor max.
6.5 Ohm/km
Shielding
Efficiency (dB):
50 and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
80
85
85
80
Technical
Data
Electrical
Characteristics
Impedance:
75� 3
Ohm
Approx.
Capacitance:
67.0 pF/m
Propagation
Velocity v/c:
0.66
Post Office
Approved:
G622010B
Attenuation
at +20�C/+68�F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
3.5
5.2
9.0
12.0
13.0
-
-
-
Structural
Return Loss (min.):
30 and 300 MHz
300 and
600 MHz
600
and 960 MHz
960
and 1750 MHz
30
30
28
25
Direct
Current Resistance at +20�C/+68�F:
Inner Conductor max.
7.3
Ohm/km
Outer Conductor max.
6.5 Ohm/km
Shielding
Efficiency (dB):
50 and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
80
85
85
80
Approvals
Cable
Construction
Used as: Underground
Inner
Conductor � mm:
1.8
Conductor Material:
Copper, bare
Insulation � mm:
11.5 PE
Outer Conductor:
Copper tape,
Braid
Outer Jacket:
PE
Jacket Color:
black
Outer Diameter
(approx.):
15.0
mm
Min. Bending
Radius:
150 mm
Strain / Suspending
Wire:
-
Weight (approx.):
218 kg/km
Properties
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
AL = Aluminum, ALPR = Polyester foil coated with Aluminum
on both sides BK-cable = bandwidth communication
cable, Cu = Copper,
CuR = Copper tube,
welded, CuW = Copper-weld, F = Foil,
G = Braid,
PE = Polyethylene, PEH =
Polyethylene air space insulation, PVC
= Polyvinylchloride
