Bimba Pneumadyne Inc. - Pneumatic Valves

Push Button (1/8 NPT (F) Input,

3-Way Normally Closed Valves)

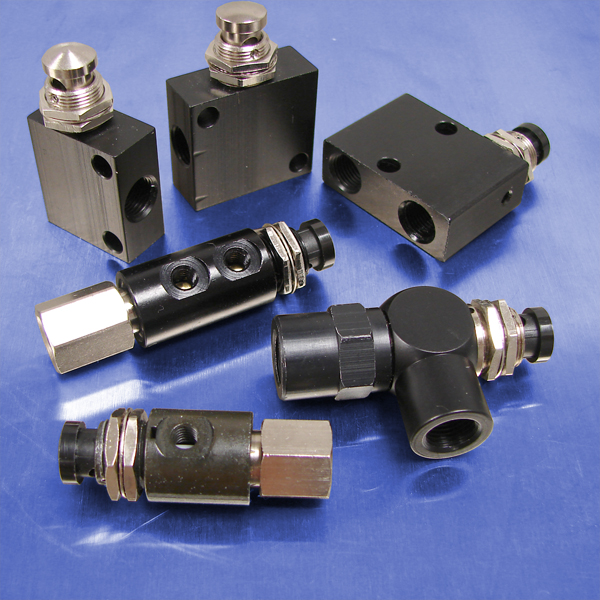

Seven configurations of 3-way valves with 1/8 NPT (F) input ports are offered to fit your application requirements.

Pneumadyne's "0" & "3" Series valves, part numbers A0-30-4 & A3-30-4, feature swivel input ports for critical valve alignment. The "3" Series also has a 10-32 (F) exhaust port for the capture and removal of exhaust flow.

"11" Series valves (part numbers start with A11) feature a swivel output port as well as push-in connections to ease tubing installation.

Four styles of "400" Series valves (part numbers start with C04) are offered for plumbing convenience. Fully ported valves feature a 1/8 NPT (F) exhaust port for the capture and removal of exhaust flow in liquid, cleanroom or lubricated air applications.

Features:

• Black anodized for corrosion and wear resistance
• High flow
• Several porting configurations to fit plumbing requirements
• Swivel ports accommodate critical valve alignment
• Plumbing and mounting versatility
• Lockwasher and nuts provided

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 15.4 to 33 scfm depending upon valve selected.
