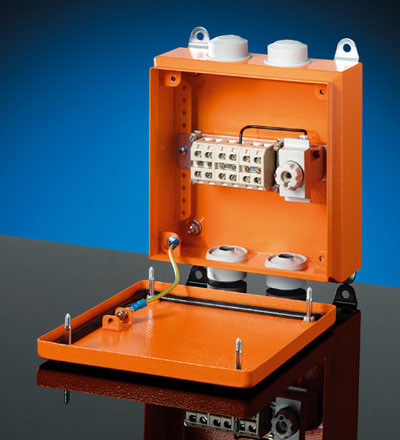

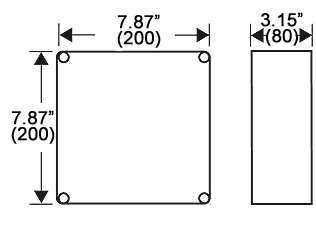

FK 9259 - Cable Junction Box - tested for Functional Integrity
for normal environment and protected outdoor
terminal block made from ceramic with resistance to high temperatures
intrinsic fire resistance E 30 in accordance with DIN 4102 part 12
cable junction box with fused outgoing unit
D 01 neozed fuse base
4 mounted plug cable glands, closed
mounted using exterior wall fixings (for dowels refer to technical data)
rated connecting capacity
1.5-10 mm�
conductor material:
Cu
Polarity
5-pole
Terminals
connecting terminals 2
junction terminals 2
PE terminals 2
conductor cross section
each
sol 1.5-10 mm�
current carrying capacity
of the terminal 40 A
rated insulation voltage
AC 400 V
degree of protection:
IP 66
material:
sheet steel
powder-coated
color:
orange RAL 2003
cable entry
mounted 4 EDKF 40
sealing range
� 11-30 mm
in accordance with
intrinsic fire resistance E 30 in accordance with DIN 4102 part 12
Testings:
Tested with cable manufacturers D�twyler and Nexans for the intrinsic fire resistance E30, see test certificate no.: P-MPA-E-02-032, download available from www.hensel-electric.de
Accessories for FK 9259: EDK 40 - Grommet, IP 66
for indoor - normal environment and (or) protected outdoor installation
ambient temperature - 25° to + 35° C
degree of protection:
IP 66
material:
thermoplastic
color:
orange RAL 2003
sealing range
� 11-30 mm
glow wire test
IEC 60 695-2-11 750�C
FK9259 Features & Applications
rated connecting capacity
1,5-10 mm�
conductor material:
Cu
Polarity
5-pole
Terminals
connecting terminals 2
junction terminals 2
PE terminals 2
conductor cross section
each
sol 1,5-10 mm�
current carrying capacity
of the terminal 40 A
rated insulation voltage
AC 400 V
degree of protection:
IP 66
material:
sheet steel
powder-coated
color:
orange RAL 2003
cable entry
mounted 4 EDKF 40
sealing range
� 11-30 mm
in accordance with
intrinsic fire resistance E 30 in accordance with DIN 4102 part 12
Testings:
Tested with cable manufacturers D�twyler and Nexans for the intrinsic fire resistance E30, see test certificate no.: P-MPA-E-02-032, download available from www.hensel-electric.de
